Authentication

The MyPings.io API uses Bearer token authentication. All requests must include a valid access token in the Authorization header.

Obtaining a token

Use the Cognito token endpoint to exchange your email and password for an access token:

curl -X POST \
  "https://cognito-idp.eu-west-1.amazonaws.com/" \
  -H "Content-Type: application/x-amz-json-1.1" \
  -H "X-Amz-Target: AWSCognitoIdentityProviderService.InitiateAuth" \
  -d '{
    "AuthFlow": "USER_PASSWORD_AUTH",
    "ClientId": "45i5tspgdd73hbd38lg20352e",
    "AuthParameters": {
      "USERNAME": "your-email@example.com",
      "PASSWORD": "your-password"
    }
  }'

The response contains an AuthenticationResult object. Use the AccessToken field in your API requests.

Making authenticated requests

Include the access token as a Bearer token in the Authorization header of every API request:

curl https://mypings.io/api/monitors \
  -H "Authorization: Bearer <your-access-token>"

Monitors API

GET List monitors

Returns all monitors for the authenticated account.

curl https://mypings.io/api/monitors \
  -H "Authorization: Bearer <your-access-token>"

Returns 200 OK with an array of monitor objects:

[
  {
    "accountId": "abc123",
    "url": "https://example.com/health",
    "jobName": "My API",
    "jobGuid": "d4e5f6a7-b8c9-...",
    "frequencySeconds": 60,
    "timeoutMiliseconds": 5000,
    "expectedStatusCode": 200,
    "enabled": true,
    "headers": {
      "X-Api-Key": "secret"
    },
    "regions": ["eu-west-1", "us-east-1"],
    "dnsProvider": null,
    "alertConfig": {
      "alertingEnabled": true,
      "alertEmails": ["you@example.com"],
      "consecutiveFailuresRequired": 3,
      "minLocationsRequired": 1,
      "reminderIntervalMinutes": null,
      "webhooks": [
        { "type": "slack", "url": "https://hooks.slack.com/services/T000/B000/xxxx" },
        { "type": "custom", "url": "https://your-server.com/webhook", "headers": { "Authorization": "Bearer your-api-key" } }
      ]
    }
  }
]

POST Create a monitor

Creates a new monitor for the authenticated account.

curl -X POST https://mypings.io/api/monitors \
  -H "Authorization: Bearer <your-access-token>" \
  -H "Content-Type: application/json" \
  -d '{
    "jobName": "My API",
    "url": "https://example.com/health",
    "frequencySeconds": 60,
    "timeoutMiliseconds": 5000,
    "expectedStatusCode": 200,
    "enabled": true,
    "headers": {
      "X-Api-Key": "secret"
    },
    "regions": ["eu-west-1", "us-east-1"],
    "dnsProvider": null,
    "alertConfig": {
      "alertingEnabled": true,
      "alertEmails": ["you@example.com"],
      "consecutiveFailuresRequired": 3,
      "minLocationsRequired": 1,
      "reminderIntervalMinutes": 60,
      "webhooks": [
        { "type": "slack", "url": "https://hooks.slack.com/services/T000/B000/xxxx" },
        { "type": "custom", "url": "https://your-server.com/webhook", "headers": { "Authorization": "Bearer your-secret" } }
      ]
    }
  }'

Returns 201 Created on success.

Request body fields

Field	Type	Required	Description
jobName	string	Yes	Display name for the monitor
url	string	Yes	URL to monitor
frequencySeconds	number	Yes	How often to run the check, in seconds. Minimum: 30
timeoutMiliseconds	number	Yes	Request timeout in milliseconds
expectedStatusCode	number	Yes	HTTP status code considered a success. Default: 200
enabled	boolean	Yes	Whether the monitor starts active immediately
headers	object	No	Custom HTTP request headers sent with each check, as key-value pairs
regions	string[]	No	List of regions to run checks from. Omit or set to null to use all available regions. See available regions below
dnsProvider	string|null	No	DNS resolver to use. null uses the default cloud resolver. Options: "cloudflare" (1.1.1.1), "google" (8.8.8.8)
alertConfig	object	No	Alert and notification settings. See alert config fields below

Available regions

Region ID	Location
eu-west-1	Europe (Ireland)
us-east-1	US East (N. Virginia)
us-west-1	US West (N. California)
ap-southeast-1	Asia Pacific (Singapore)
ap-southeast-2	Asia Pacific (Sydney)

Alert config fields

Field	Type	Default	Description
alertingEnabled	boolean	true	Whether alerts are active for this monitor
alertEmails	string[]	[]	Email addresses to notify when an alert fires
consecutiveFailuresRequired	number	3	Number of consecutive failing checks required before an alert is sent
minLocationsRequired	number	1	Minimum number of regions that must be failing before an alert fires. Cannot exceed the number of selected regions
reminderIntervalMinutes	number|null	null	How often (in minutes) to re-send alerts while the monitor remains down. Minimum: 10. Set to null to disable reminders
webhooks	array|null	null	Up to 5 webhook destinations. Each entry is an object with url (string), type ("custom", "slack", or "discord"), and optional headers (object, custom type only). See Webhooks for details.

PUT Update alert config

Replaces the alert configuration for the specified monitor. Pass the complete alert config object — any fields omitted will revert to their defaults.

curl -X PUT https://mypings.io/api/monitors/<monitorid>/alerts \
  -H "Authorization: Bearer <your-access-token>" \
  -H "Content-Type: application/json" \
  -d '{
    "alertingEnabled": true,
    "alertEmails": ["you@example.com"],
    "consecutiveFailuresRequired": 3,
    "minLocationsRequired": 1,
    "reminderIntervalMinutes": 60,
    "webhooks": [
      { "type": "slack", "url": "https://hooks.slack.com/services/T000/B000/xxxx" },
      { "type": "custom", "url": "https://your-server.com/webhook", "headers": { "Authorization": "Bearer your-secret" } }
    ]
  }'

Returns 200 OK on success.

Request body fields

Field	Type	Default	Description
alertingEnabled	boolean	true	Whether alerts are active for this monitor
alertEmails	string[]	[]	Email addresses to notify when an alert fires. Free plan accounts may only use their registered account email — upgrade to Basic or Pro to add additional addresses
consecutiveFailuresRequired	number	3	Number of consecutive failing checks required before an alert is sent. Minimum: 1
minLocationsRequired	number	1	Minimum number of regions that must be failing before an alert fires. Minimum: 1. Cannot exceed the number of selected regions
reminderIntervalMinutes	number|null	null	How often (in minutes) to re-send alerts while the monitor remains down. Minimum: 10. Set to null to disable reminders
webhooks	array|null	null	Up to 5 webhook destinations. Each entry: url (required, valid HTTP/HTTPS), type ("custom", "slack", or "discord"), and optional headers object (custom type only).

DELETE Delete a monitor

Permanently deletes the specified monitor and stops all scheduled checks. This action cannot be undone.

curl -X DELETE https://mypings.io/api/monitors/<monitorid> \
  -H "Authorization: Bearer <your-access-token>"

Returns 200 OK on success, or 404 Not Found if the monitor does not exist or does not belong to the authenticated account.

Executions API

Query the raw check results recorded for a monitor.

GET List executions

Returns a page of execution records for the specified monitor, ordered newest-first.

curl "https://mypings.io/api/monitors/<monitorid>/executions?timefromms=<ms>&timetoms=<ms>" \
  -H "Authorization: Bearer <your-access-token>"

Query parameters

Parameter	Type	Required	Description
timefromms	number	No	Start of time range as Unix timestamp in milliseconds. Defaults to 0
timetoms	number	No	End of time range as Unix timestamp in milliseconds. Defaults to now
cursorms	number	No	Pagination cursor — the request_start_timestamp_miliseconds_since_epoch of the last record on the previous page
limit	number	No	Maximum number of records to return. Defaults to 50, maximum 1000
statusfilter	string	No	Filter by outcome. Use "success" or "failure". Omit to return all results

Returns 200 OK with an array of execution objects:

[
  {
    "success": true,
    "timed_out": false,
    "url": "https://example.com/health",
    "dns_lookup_time": 1.23,
    "tcp_connecting_duration": 5.67,
    "tls_handshaking_duration": 12.34,
    "http_time_to_first_byte": 45.6,
    "http_receiving_body_duration": 2.1,
    "http_total_request_duration": 67.8,
    "entire_ping_job_execution_duration": 70.1,
    "http_req_failed": 0,
    "result_http_status_code": 200,
    "expected_status_code": 200,
    "http_data_sent_bytes_total": 512,
    "http_data_received_bytes_total": 2048,
    "http_data_sent_bytes_body_only": 0,
    "http_data_received_bytes_body_only": 1800,
    "remote_ip_address": "93.184.216.34",
    "node_ip_address": "10.0.1.5",
    "job_guid": "d4e5f6a7-b8c9-...",
    "request_start_timestamp_miliseconds_since_epoch": 1734567890123,
    "region": "eu-west-1",
    "node_id": "node-eu-west-1-a",
    "dns_provider": null
  }
]

Execution object fields

Field	Type	Description
success	boolean	Whether the check passed — true when the response status code matches expected_status_code and no timeout occurred
timed_out	boolean	Whether the request exceeded the monitor's configured timeout before a response was received
url	string	The URL that was checked
dns_lookup_time	number (ms)	Time taken to resolve the hostname to an IP address
tcp_connecting_duration	number (ms)	Time taken to complete the TCP three-way handshake
tls_handshaking_duration	number (ms)	Time taken to complete the TLS handshake. 0 for plain HTTP connections
http_time_to_first_byte	number (ms)	Time from sending the request to receiving the first byte of the response (TTFB)
http_receiving_body_duration	number (ms)	Time taken to download the full response body after the first byte was received
http_total_request_duration	number (ms)	Total HTTP round-trip time: from sending the request to completing the response body download
entire_ping_job_execution_duration	number (ms)	End-to-end wall-clock time for the full check, including DNS, connection, request, and any internal overhead
http_req_failed	number	0 if the HTTP request completed (regardless of status code), 1 if it failed at the network or transport level
result_http_status_code	number	The HTTP status code returned by the server
expected_status_code	number	The HTTP status code the monitor is configured to expect. A mismatch sets success to false
http_data_sent_bytes_total	number	Total bytes sent for the request, including headers
http_data_received_bytes_total	number	Total bytes received in the response, including headers
http_data_sent_bytes_body_only	number	Bytes sent as the request body (excluding headers)
http_data_received_bytes_body_only	number	Bytes received as the response body (excluding headers)
remote_ip_address	string	IP address of the server that handled the request
node_ip_address	string	Public IP address of the monitoring node that performed the check
job_guid	string	UUID uniquely identifying this execution
request_start_timestamp_miliseconds_since_epoch	number	Unix timestamp in milliseconds when the check started. Also used as the execution ID in the Get execution by ID endpoint
region	string	AWS region identifier of the monitoring node that performed the check (e.g. eu-west-1)
node_id	string	Identifier of the specific monitoring node within the region
dns_provider	string | null	DNS resolver used by the monitoring node, if known. null when not applicable or not detected

GET Get execution by ID

Returns a single execution record. The execution ID is the request_start_timestamp_miliseconds_since_epoch value from a list executions response.

curl "https://mypings.io/api/monitors/<monitorid>/executions/<executionid>" \
  -H "Authorization: Bearer <your-access-token>"

Returns 200 OK with a single execution object (same schema as above), or 404 Not Found if no matching execution exists.

Webhooks

Receive real-time alert notifications as HTTP POST requests to any URL you control — including Slack and Discord.

Overview

Each monitor supports up to 5 webhooks. When an alert fires, MyPings.io sends an HTTP POST request to each configured webhook URL simultaneously. You can mix webhook types on the same monitor — for example, send a Slack message and a custom JSON payload at the same time.

Webhooks fire in two situations:

• Alert — when the configured consecutive failure threshold is met across the required number of locations. The same deduplication and reminder interval logic applies to webhooks as to emails.
• Recovery — when the first successful check arrives after an alert. A recovery webhook is sent automatically to all configured webhook URLs, using a distinct payload (event: "alert.recovered") so you can distinguish it from an alert.

Webhook types

Each webhook has a type that controls the payload format sent to the URL:

Type	Description
custom — JSON Event	Full JSON alert payload (see Custom payload below). Supports custom request headers for authentication.

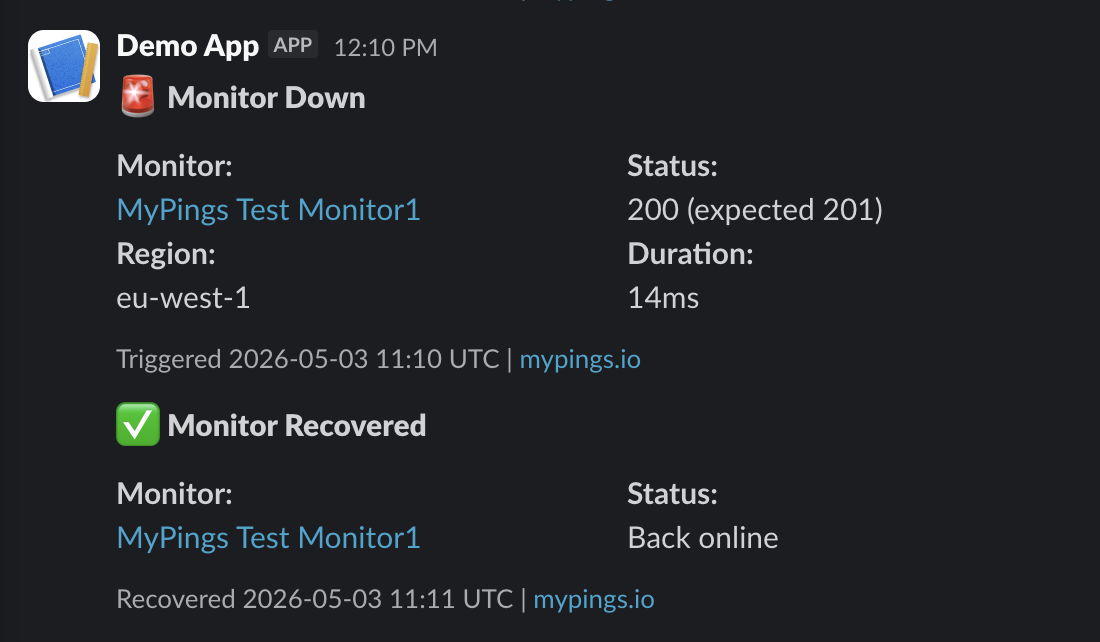

slack	Slack Incoming Webhook message using Block Kit. Use the Slack webhook URL directly — no custom headers required.

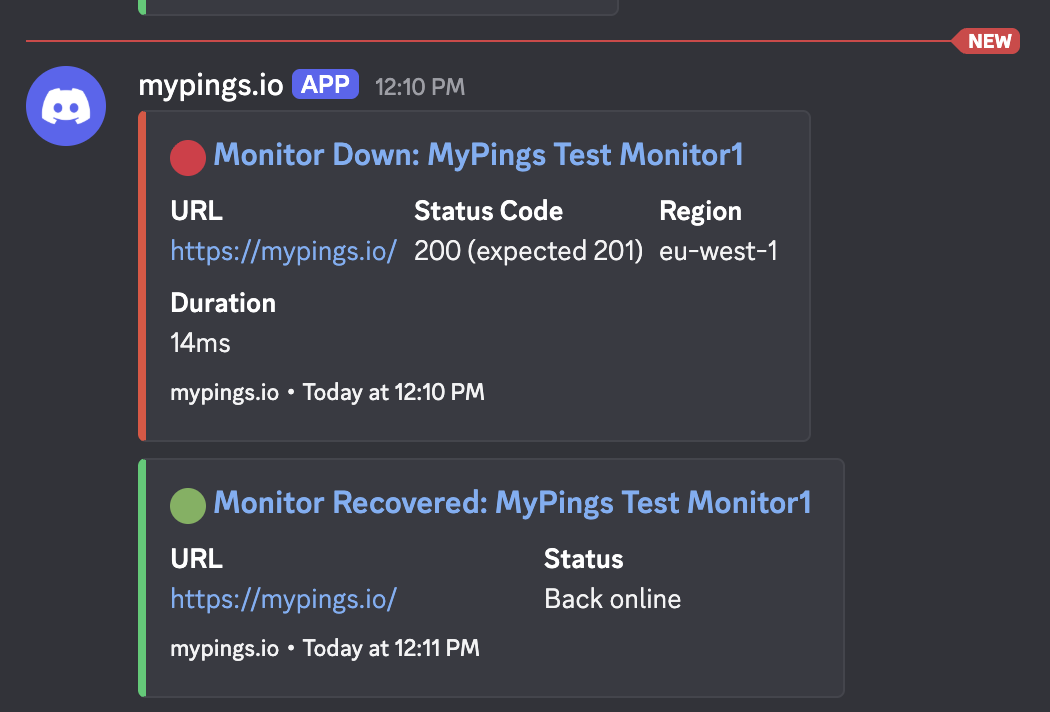

discord	Discord webhook message with an embed. Use the Discord webhook URL directly — no custom headers required.

Configuring webhooks

Add webhooks via the dashboard (expand the Alerts section when creating or editing a monitor) or via the API using the webhooks array in the alertConfig object:

curl -X PUT https://mypings.io/api/monitors/<monitorid> \
  -H "Authorization: Bearer <your-access-token>" \
  -H "Content-Type: application/json" \
  -d '{
    "alertConfig": {
      "alertEmails": [],
      "webhooks": [
        {
          "type": "slack",
          "url": "https://hooks.slack.com/services/T000/B000/xxxx"
        },
        {
          "type": "discord",
          "url": "https://discord.com/api/webhooks/000/xxxx"
        },
        {
          "type": "custom",
          "url": "https://your-server.com/webhook",
          "headers": {
            "Authorization": "Bearer my-secret-token"
          }
        }
      ],
      "consecutiveFailuresRequired": 3,
      "minLocationsRequired": 1
    }
  }'

Up to 5 webhooks per monitor. Webhooks and email alerts are independent — you can use one, both, or neither.

JSON Event payload (custom)

When type is "custom", MyPings.io sends a POST request with Content-Type: application/json and the following body:

{
  "source": "mypings.io",
  "event": "alert.triggered",
  "monitor": {
    "id": "d4e5f6a7-b8c9-...",
    "name": "My API",
    "url": "https://example.com/health"
  },
  "alert": {
    "reason": "Monitor failed 3 consecutive times from 1 or more locations",
    "triggeredAtMs": 1734567890123,
    "triggeredAt": "2024-12-19T01:31:30.1230000Z",
    "failureRegion": "eu-west-1",
    "statusCode": 503,
    "expectedStatusCode": 200,
    "totalRequestDurationMs": 4821.5,
    "timedOut": false,
    "dnsProvider": null,
    "remoteIpAddress": "93.184.216.34",
    "nodeId": "node-eu-west-1-a"
  },
  "consecutiveFailures": [
    {
      "timestampMs": 1734567830000,
      "region": "eu-west-1",
      "statusCode": 503,
      "expectedStatusCode": 200,
      "totalRequestDurationMs": 4821.5,
      "timedOut": false
    },
    {
      "timestampMs": 1734567770000,
      "region": "eu-west-1",
      "statusCode": 503,
      "expectedStatusCode": 200,
      "totalRequestDurationMs": 4903.1,
      "timedOut": false
    },
    {
      "timestampMs": 1734567710000,
      "region": "eu-west-1",
      "statusCode": 503,
      "expectedStatusCode": 200,
      "totalRequestDurationMs": 4756.8,
      "timedOut": false
    }
  ]
}

Custom payload field reference

Field	Type	Description
source	string	Always "mypings.io"
event	string	"alert.triggered" for failure alerts; "alert.recovered" for recovery notifications
monitor.id	string	Unique monitor ID (UUID)
monitor.name	string	Monitor display name
monitor.url	string	URL being monitored
alert.reason	string	Human-readable description of why the alert fired
alert.triggeredAtMs	number	Unix timestamp (milliseconds) of the triggering failure
alert.triggeredAt	string	ISO 8601 UTC timestamp of the triggering failure
alert.failureRegion	string	AWS region where the triggering failure occurred
alert.statusCode	number	HTTP status code received (0 if no response)
alert.expectedStatusCode	number	HTTP status code that was expected
alert.totalRequestDurationMs	number	Total request duration in milliseconds
alert.timedOut	boolean	true if the request timed out with no response
alert.dnsProvider	string|null	DNS provider used for the check
alert.remoteIpAddress	string|null	IP address of the remote server
alert.nodeId	string|null	Internal node that performed the check
consecutiveFailures	array	The consecutive failing pings that triggered the alert, ordered newest first

Recovery webhook payload

When a monitor recovers, the same webhook URLs receive a POST with event: "alert.recovered". The payload is simpler — there are no failure details, just the monitor identity and the time recovery was detected:

{
  "source": "mypings.io",
  "event": "alert.recovered",
  "monitor": {
    "id": "d4e5f6a7-b8c9-...",
    "name": "My API",
    "url": "https://example.com/health"
  },
  "recovery": {
    "recoveredAtMs": 1734568500000,
    "recoveredAt": "2024-12-19T01:41:40.0000000Z"
  }
}

Field	Type	Description
event	string	Always "alert.recovered" for recovery events
recovery.recoveredAtMs	number	Unix timestamp (milliseconds) of the first successful check after the incident
recovery.recoveredAt	string	ISO 8601 UTC timestamp of the recovery

Slack webhook

When type is "slack", MyPings.io sends a Slack Incoming Webhook message using Block Kit. To set it up:

1. In Slack, go to Apps → Incoming WebHooks and create a new webhook for your channel.
2. Copy the webhook URL (it starts with https://hooks.slack.com/services/…).
3. Add a new webhook on your monitor, choose Slack, and paste the URL.

No custom headers are needed — the URL already contains the authentication secret.

Alert messages appear with a red header and a Monitor Down title. Recovery messages use a green header and a Monitor Recovered title, so they are visually distinct in your channel.

Discord webhook

When type is "discord", MyPings.io sends a Discord webhook message with an embed. To set it up:

1. In Discord, open your server settings → Integrations → Webhooks and create a new webhook for your channel.
2. Copy the webhook URL (it starts with https://discord.com/api/webhooks/…).
3. Add a new webhook on your monitor, choose Discord, and paste the URL.

No custom headers are needed — the URL already contains the authentication secret.

Alert embeds use a red colour. Recovery embeds use a green colour, with the title Monitor Recovered.

Responding to webhooks

Your endpoint must return a 2xx HTTP status code within 15 seconds to be considered successful. If a non-2xx response is received or the request times out, MyPings.io will retry the delivery up to 3 times.

Security

For custom webhooks, use HTTPS and add an Authorization header (bearer token) or X-Webhook-Secret header (shared secret) via the Headers section in the dashboard or the headers field in the API. Your endpoint can then validate the header value before processing the payload.

For Slack and Discord webhooks, authentication is handled by the URL itself — keep the URL private and do not share it publicly.

Our Story

Why we built MyPings.io, and what drives us.

MyPings.io was created to solve three problems with the existing monitoring platforms: cost, frequency of checks, and complexity. The cost of the existing solutions was often prohibitive for small teams and side projects, the frequency of checks was insufficient to catch issues in real-time, and the complexity of setup and management made it difficult for teams to effectively use the tools.

FAQ

Frequently asked questions about MyPings.io.

Q: How long is data retained?

A: Metrics are retained for 12 months before being deleted. Individual executions are retained for 6 months.

Q: What's the minimum time between checks allowed?

A: 30 seconds.

Q: Do you support adding headers to a monitor HTTP request?

A: Yes, you can add a maximum of 10 custom headers to your monitor.

Q: Are monitor executions from one location or many?

A: Checks are run from multiple AWS locations simultaneously. We currently have 5 locations:

• Europe (Ireland)
• US East (N. Virginia)
• US West (N. California)
• Asia Pacific (Singapore)
• Asia Pacific (Sydney)

Need a location not listed here? We can add more AWS locations on request — use the Suggestion Box in the menu when logged in to get in touch.

Q: Can I configure alerts to notify me if my website or web service goes down?

A: Yes, you can be notified via email or webhook when a monitor transitions to a degraded or down state. MyPings.io also sends a recovery notification automatically once the monitor passes a check after an incident, so you know the issue has resolved without needing to log in.
